This listing is for a 2 channel Cable Set of RCA plug to XLR 3 pin Male connectors.  Most commonly used for transmitting line level audio signals from DJ equipment, studio monitors, mixers, speakers and amplifers.

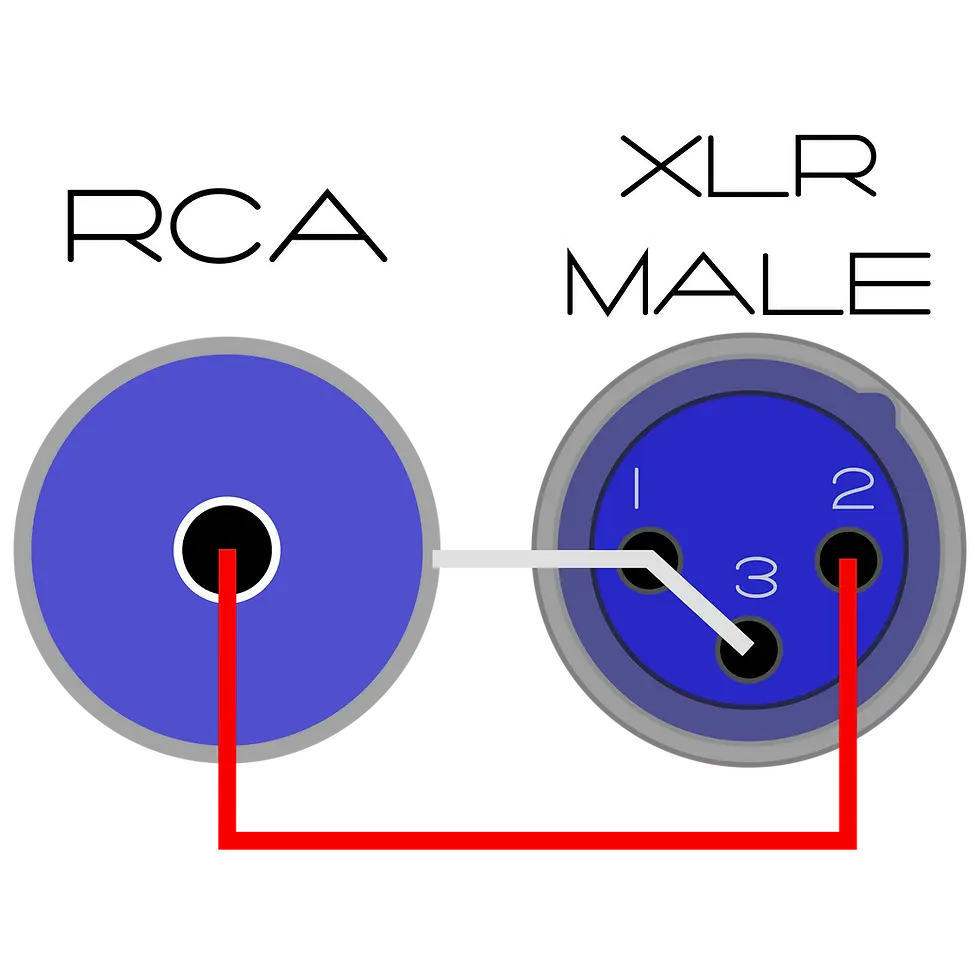

These cables will transmit your RCA output to an Unbalanced XLR signal.  The RCA connectors will be connected to Pin 2 of the XLR connector



All cable options include excellent dielectric insulation and shielding to reject EMI and RFI.



This cable is available in OFC, SPOFC, OCC, SPOCC & Pure Silver.



OFC Cable Specs

  • 24 AWG Oxygen Free Copper conductors (4x per channel)
  • High density braided copper shield.

  • PE dielectric insulation.

  • PVC Outer Jacket

  • Outer Cable Diameter:  7.5 mm



SPOFC Cable Specs

  • 20 AWG Silver Plated Oxygen Free Copper Conductors (4x per channel)
  • High density braided copper shield.
  • PTFE Teflon dielectric insulation
  • FEP Outer Jacket
  • Outer Cable Diameter:  5.8 mm



OCC Cable Specs

  • 24 AWG Ohno Continuous Cast conductors (4x per channel)
  • PE Dielectric Insulation
  • High density braided copper shield.
  • Aluminum Foil Shield
  • Double Layer Outer PVC Jacket
  • Outer Cable Diameter:  8.4 mm



SPOCC Cable Specs

  • 24 AWG Silver Plated Ohno Continuous Cast conductors (4x per channel)
  • PE Dielectric Insulation
  • High density braided copper shield.
  • Aluminum Foil Shield
  • Outer PVC Jacket & Interior PVC Jacket
  • Outer Cable Diameter:  9.4 mm



Pure Silver Cable Specs

  • 27 AWG Pure Silver conductors (4x per channel)
  • FEP Inner & PE Outer Layer Dielectric Insulation
  • High density Silver Plated braided copper shield.
  • Aluminum Foil Shield
  • Double Layer Outer PVC Jacket
  • Outer Cable Diameter:  8.4 mm



XLR Connector Specs

  • Rhodium Plated Pure Copper Pins
  • Carbon fiber and nonmagnetic stainless steel housing



Furutech RCA Connector Specs

  • α (Alpha) OCC rhodium-plated center conductor
  • α (Alpha) copper alloy rhodium-plated body
  • Carbon fiber and nonmagnetic stainless steel housing



If you prefer one of the sleeving options not available in the drop down, select the custom option and please leave a message when checking out with your preferred sleeves for each channel.

RCA Plug to XLR 3 Pin Male - 2 Unbalanced Channels Cable Set

PriceFrom $79.99
