This Stereo Breakout Cable will connect Dual XLR 3 Pin connectors to a 2.5 mm TRRS stereo output. This cable is primarily used as an adapter for balanced headphones terminated in Dual 3 pin XLR male connectors and convert it to 2.5 mm TRRS for DAPs and DACs with 2.5 mm Balanced Outputs. This cable transmits a balanced stereo signal.

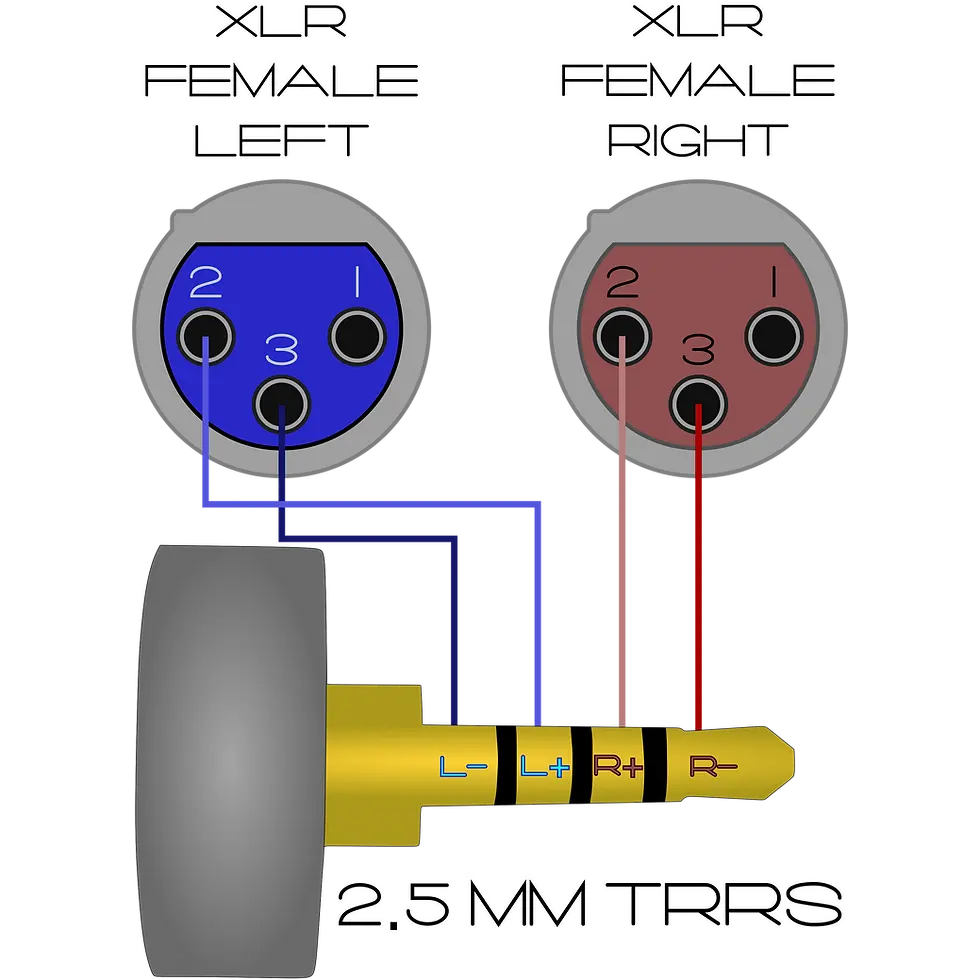

The Pinout is as follows, also pictured above:
2.5 mm Tip, R- : XLR Right Pin 3
2.5 mm Ring 1, R+ : XLR Right Pin 2
2.5 mm Ring 2, L+ : XLR Left Pin 2
2.5 mm Sleeve, L- : XLR Left Pin 3
The Right XLR channel is marked in Red, and the Left is marked in Black.
All cable options include excellent dielectric insulation and are fully shielded to reject EMI and RFI.
This cable is available in OFC, SPOFC, OCC, & Pure Silver.
OFC Cable Specs
- 24 AWG Oxygen Free Copper conductors (4x per channel)
High density braided copper shield.
PE dielectric insulation.
PVC Outer Jacket
Outer Cable Diameter: 6.3 mm
SPOFC Cable Specs
- 20 AWG Silver Plated Oxygen Free Copper Conductors (4x per channel)
- High density braided copper shield.
- PTFE Teflon dielectric insulation
- FEP Outer Jacket
Outer Cable Diameter: 5.8 mm
OCC Cable Specs
- 24 AWG Ohno Continuous Cast conductors (4x per channel)
- PE Dielectric Insulation
- High density braided copper shield.
- Aluminum Foil Shield
- Double Layer Outer PVC Jacket
Outer Cable Diameter: 8.4 mm
Pure Silver Cable Specs
- 27 AWG Pure Silver conductors (4x per channel)
- FEP Inner & PE Outer Layer Dielectric Insulation
- High density Silver Plated braided copper shield.
- Aluminum Foil Shield
- Double Layer Outer PVC Jacket
Outer Cable Diameter: 8.4 mm
XLR 3 Pin Female Connector Specs
- Rhodium Plated Pure Copper Pins
- Carbon fiber and nonmagnetic stainless steel housing
2.5 mm TRRS Plug Connector Specs
- Gold Plated Pure Copper Contacts
- Carbon fiber and nonmagnetic stainless steel housing
