This Stereo Breakout Cable will allow you to plug in your 3.5 mm Mini TRS cable to convert it to an XLR 3 Pin Stereo input. It functions as an adapter that is also an extension cable.



The Right XLR Channel is marked with Red and it's Pin 2 is connected to the Ring channel of the 3.5 Mini TRS Plug.  The Left RCA Channel is marked with Black and it's Pin 2 is connected to the Tip Channel of the 3.5 Mini TRS Plug.



All cable options include excellent dielectric insulation and are fully shielded to reject EMI and RFI.



This cable is available in OFC, SPOFC, OCC & Pure Silver.



OFC Cable Specs

  • 24 AWG Oxygen Free Copper conductors (4x per channel)
  • High density braided copper shield.

  • PE dielectric insulation.

  • PVC Outer Jacket

  • Outer Cable Diameter:  7.5 mm



SPOFC Cable Specs

  • 20 AWG Silver Plated Oxygen Free Copper Conductors (4x per channel)
  • High density braided copper shield.
  • PTFE Teflon dielectric insulation
  • FEP Outer Jacket
  • Outer Cable Diameter:  5.8 mm



OCC Cable Specs

  • 24 AWG Ohno Continuous Cast conductors (4x per channel)
  • PE Dielectric Insulation
  • High density braided copper shield.
  • Aluminum Foil Shield
  • Double Layer Outer PVC Jacket
  • Outer Cable Diameter:  8.4 mm



Pure Silver Cable Specs

  • 27 AWG Pure Silver conductors (4x per channel)
  • FEP Inner & PE Outer Layer Dielectric Insulation
  • High density Silver Plated braided copper shield.
  • Aluminum Foil Shield
  • Double Layer Outer PVC Jacket
  • Outer Cable Diameter:  8.4 mm



3.5 Mini TRS Connector Specs

  • Gold Plated Pure Copper Contacts
  • Carbon fiber and nonmagnetic stainless steel housing



XLR Connector Specs

  • Rhodium Plated Pure Copper Pins
  • Carbon fiber and nonmagnetic stainless steel housing

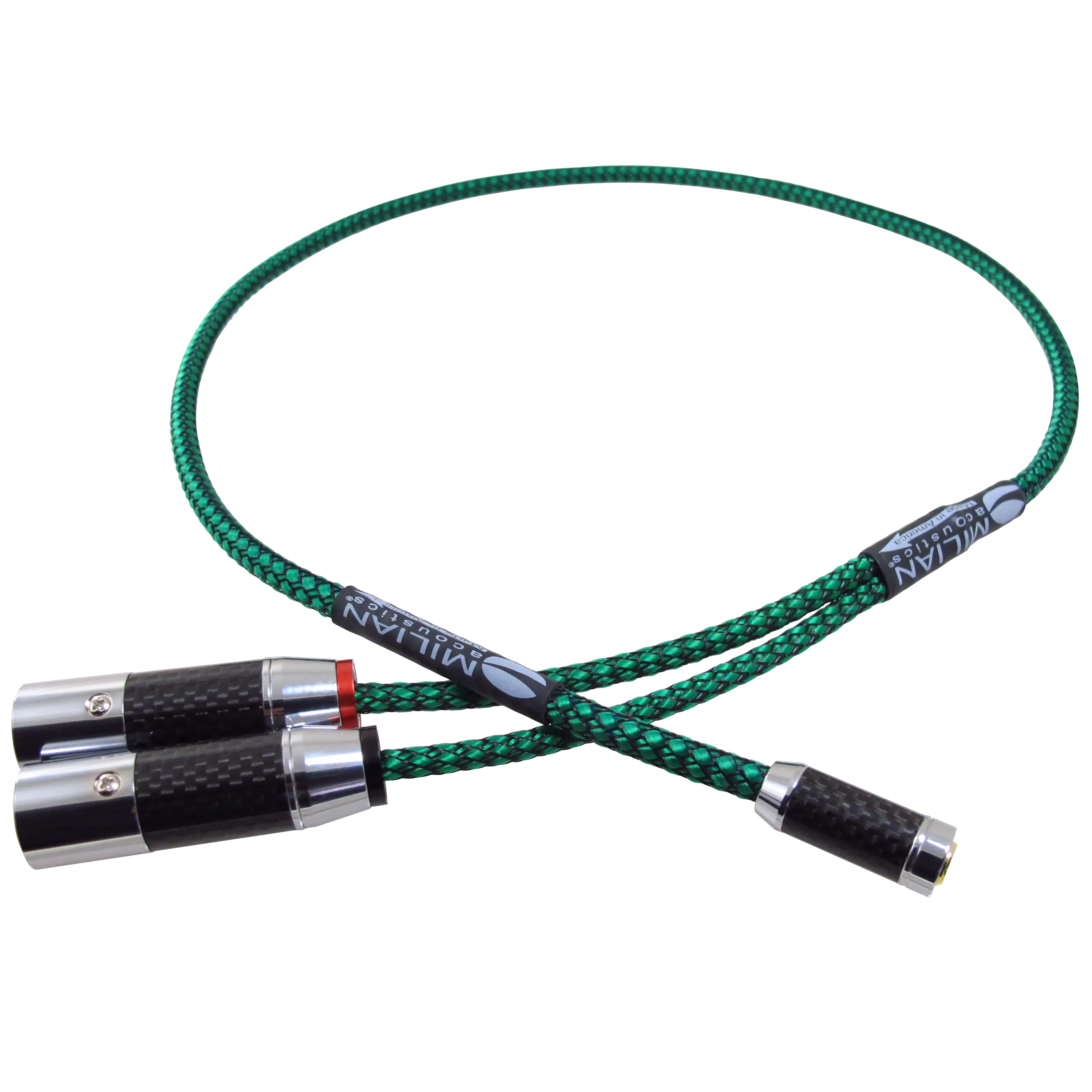

3.5 mm Mini TRS Jack to Dual XLR Male Stereo Breakout Cable

PriceFrom $59.99
