This adapter cable converts your 2.5 mm TRRS plug terminated cable to a 4 Pin XLR Male plug.  Most commonly used for connecting balanced headphones terminated with a 2.5 mm TRRS plug to a 4 Pin XLR balanced output from an Headphone amplifier, DAP or DAC audio source.  There are many length choices available to double as an extension cable.  This cable transmits a balanced stereo signal.

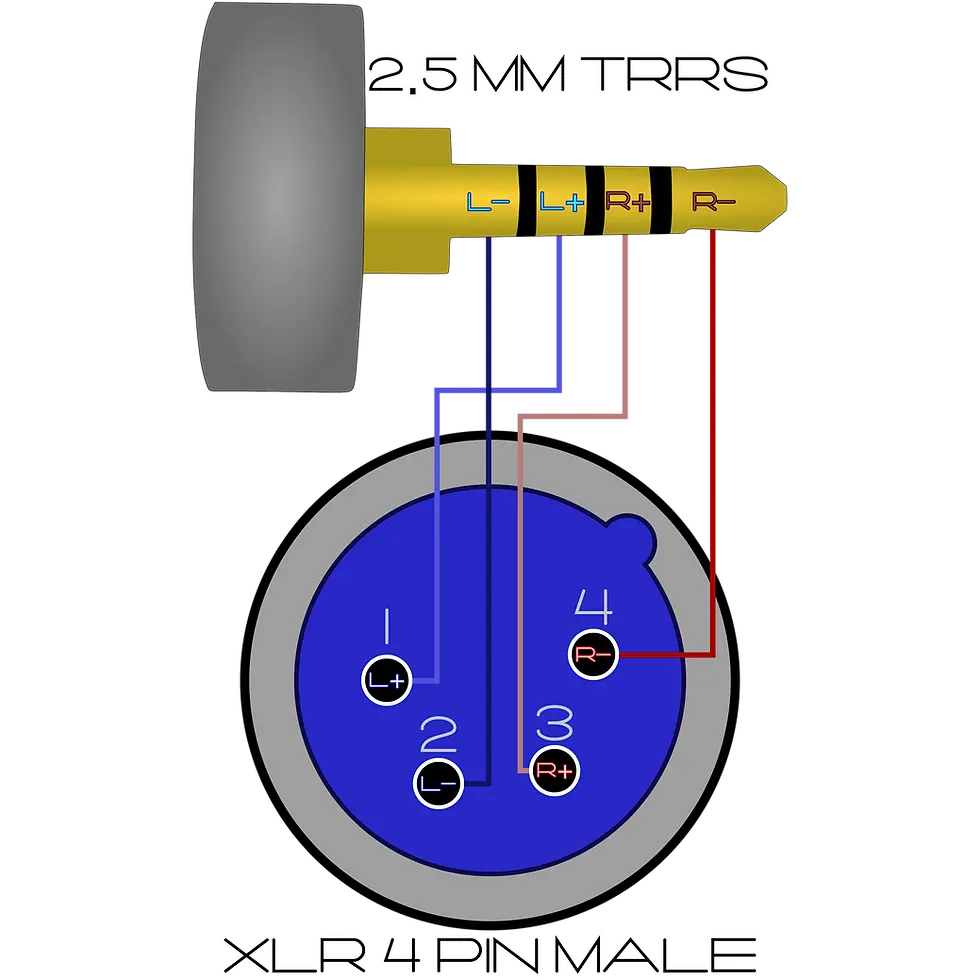

The Pinout is as follows, also pictured above:



2.5 mm Tip, R- : XLR Pin 4

2.5 mm Ring 1, R+ : XLR Pin 3

2.5 mm Ring 2, L+ : XLR Pin 1

2.5 mm Sleeve, L- : XLR Pin 2



All cable options include excellent dielectric insulation and shielding to reject EMI and RFI.



This Cable is available in OFC, SPOFC, OCC & Pure Silver.



OFC Cable Specs

  • 24 AWG Oxygen Free Copper conductors (4x)
  • High density braided copper shield.

  • PE dielectric insulation.

  • PVC Outer Jacket

  • Outer Cable Diameter:  6.3 mm



SPOFC Cable Specs

  • 20 AWG Silver Plated Oxygen Free Copper Conductors (4x)
  • High density braided copper shield.
  • PTFE Teflon dielectric insulation
  • FEP Outer Jacket
  • Outer Cable Diameter:  5.8 mm



OCC Cable Specs

  • 24 AWG Ohno Continuous Cast conductors (4x)
  • PE Dielectric Insulation
  • High density braided copper shield.
  • Aluminum Foil Shield
  • Double Layer Outer PVC Jacket
  • Outer Cable Diameter:  8.4 mm



Pure Silver Cable Specs

  • 27 AWG Pure Silver conductors (4x)
  • FEP Inner & PE Outer Layer Dielectric Insulation
  • High density Silver Plated braided copper shield.
  • Aluminum Foil Shield
  • Double Layer Outer PVC Jacket
  • Outer Cable Diameter:  8.4 mm



2.5 mm TRRS Connector Specs

  • Gold Plated Pure Copper Contacts
  • Carbon fiber and nonmagnetic stainless steel housing



4 Pin XLR Male Connector Specs

  • Rhodium Plated Pure Copper Contacts
  • Carbon fiber and nonmagnetic stainless steel housing

2.5 mm TRRS Jack to 4 Pin XLR Male Balanced Stereo Adapter Cable

PriceFrom $49.99
